Product description

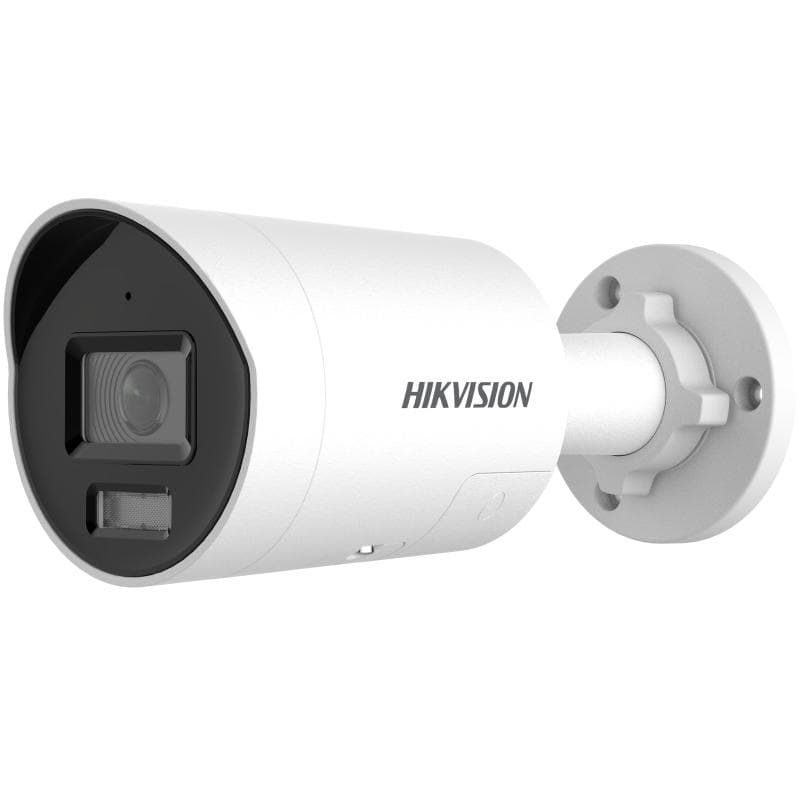

The Hikvision DS-2CD1023G2-LIDUF/4G/SL is a 2 MP Smart Hybrid Light 4G fixed bullet network camera for CCTV locations where wired internet may not be practical. It uses a 1/2.9-inch progressive scan CMOS sensor with 1920 x 1080 resolution, supports 4G LTE data transmission through a Nano SIM, and provides smart hybrid IR and white light illumination up to 30 m. The camera supports human and vehicle detection, built-in microphone, built-in speaker, audible warning, flashing white light, H.265/H.264 compression, microSD storage up to 512 GB, Hik-Connect and iVMS-4200 client access. It is suitable for remote entrances, temporary sites, perimeter points and standalone CCTV locations that need recording, deterrence and mobile network connectivity in one camera body.
Specifications
- Model
- DS-2CD1023G2-LIDUF/4G/SL
- Product Type
- 2 MP Smart Hybrid Light 4G Fixed Bullet Network Camera
- Image Sensor
- 1/2.9-inch Progressive Scan CMOS
- Max Resolution
- 1920 x 1080
- Minimum Illumination
- Color: 0.01 Lux @ F2.2, AGC ON; B/W: 0 Lux with IR
- Shutter Time
- 1/3 s to 1/100,000 s
- Day Night
- IR cut filter
- Angle Adjustment
- Pan: 0 deg to 360 deg; tilt: 0 deg to 90 deg; rotate: 0 deg to 360 deg
- Lens Options
- Fixed focal lens, 2.8 mm and 4 mm optional
- Field Of View
- 2.8 mm: horizontal 104 deg, vertical 57 deg, diagonal 121 deg; 4 mm: horizontal 84 deg, vertical 45 deg, diagonal 100 deg
- Lens Mount
- M12
- Iris And Aperture
- Fixed iris, F2.2 aperture
- DORI
- 2.8 mm: D 45 m, O 18 m, R 9 m, I 4 m; 4 mm: D 56 m, O 22 m, R 11 m, I 5 m
- Supplement Light
- IR and white light, up to 30 m, smart supplement light, 850 nm IR wavelength
- Main Stream
- 50 Hz: 25 fps at 1920 x 1080 or 1280 x 720; 60 Hz: 30 fps at 1920 x 1080 or 1280 x 720
- Sub Stream
- 50 Hz: 25 fps at 768 x 432; 60 Hz: 30 fps at 768 x 432
- Video Compression
- Main stream: H.265, H.264; sub-stream: H.265, H.264, MJPEG
- Video Bit Rate
- 32 Kbps to 8 Mbps
- H264Type
- Baseline Profile, Main Profile, High Profile
- H265Type
- Main Profile
- Bit Rate Control
- CBR, VBR
- ROI
- 1 fixed region for main stream
- Audio Type
- Mono sound
- Audio Compression
- G.711, AAC-LC
- Audio Bit Rate
- 64 Kbps G.711u-law; 16 to 64 Kbps AAC-LC
- Audio Sampling Rate
- 8 kHz and 16 kHz
- Environment Noise Filtering
- Yes
- Mobile Communication
- LTE-FDD
- LTEFrequency
- LTE-FDD: B1, B3, B5, B7, B8, B20, B28
- Data Rate
- Cat 1 uplink: 5.1 Mbps; downlink: 10.3 Mbps
- SIMCard Type
- Nano SIM
- Wide Dynamic Range
- Digital WDR
- SNR
- >= 52 dB
- Privacy Mask
- 4 programmable polygon privacy masks
- Day Night Switch
- Day, night, auto, schedule
- Image Enhancement
- BLC, HLC, 3D DNR
- Image Settings
- Saturation, brightness, contrast, sharpness, gain and white balance adjustable by client software or web browser
- Network Protocols
- TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP and SNMP
- API
- Open Network Video Interface profiles S, T and G; ISAPI; SDK; ISUP
- Simultaneous Live View
- Up to 6 channels
- Users
- Up to 32 users with administrator, operator and user levels
- Security
- Password protection, complicated password, HTTPS encryption, watermark, HTTP/HTTPS authentication, WSSE and digest authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3 and host authentication
- Client Software
- iVMS-4200, Hik-Connect
- Browser Support
- Local service: IE11, Chrome 57.0+, Firefox 52.0+ and Edge 89+
- Ethernet
- 1 RJ45 10M/100M self-adaptive Ethernet port
- On Board Storage
- Built-in microSD/microSDHC/microSDXC card slot, up to 512 GB
- Built In Microphone
- Yes, 1 built-in microphone
- Built In Speaker
- Max. power consumption 1.5 W; max. sound pressure level 95 dB at 10 cm
- Reset Key
- Yes
- Basic Events
- Motion detection with specified human and vehicle target types, video tampering alarm and exception
- Linkage
- Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning and flashing light
- Power
- 12 VDC +/-25%, 0.75 A, max. 9 W, diameter 5.5 mm coaxial power plug, reverse polarity protection
- Material
- Plastic
- Dimensions
- 238.5 mm x 97.6 mm x 67.4 mm
- Package Dimensions
- 530 mm x 524 mm x 325 mm
- Weight
- Approx. 390 g; approx. 722 g with package
- Operating Conditions
- -30 C to 40 C, humidity 95% or less non-condensing
- Language
- English, Ukrainian
- General Functions
- Heartbeat, anti-banding, mirror, password protection and password reset via email
- Flashing Light
- Yes, white light
- Protection
- IP67 water and dust resistance
- Approvals
- CE-EMC, IC, KC, CB, CE-LVD, BIS, CE-RoHS, WEEE and REACH
